Indicator Lamp

ABS Indicator Lamp

SR-5

™

™

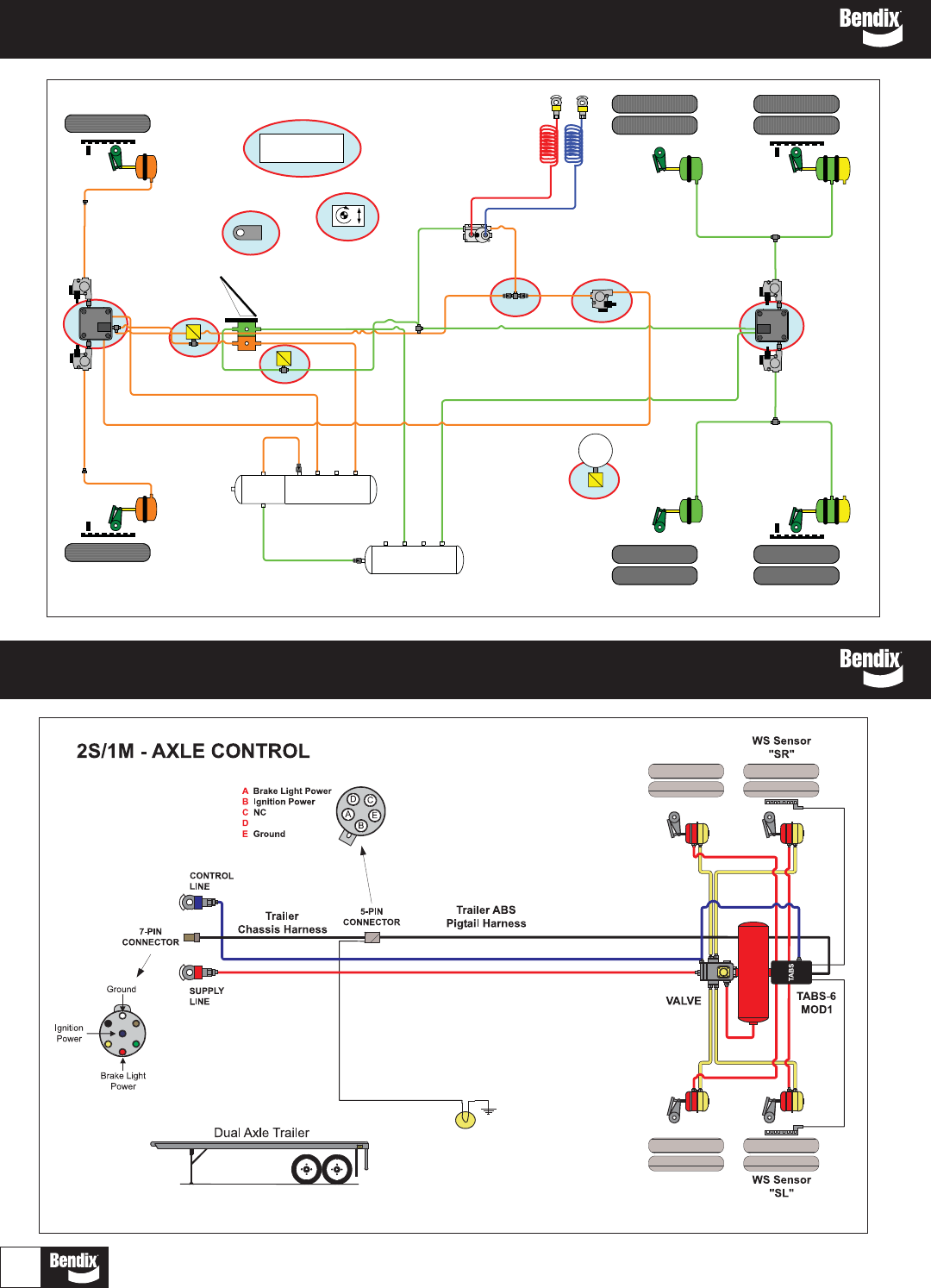

Example 2: 2S/1M Trailer ABS

ADVANCED ABS6

ECU - CAB

STEERING ANGLE

SENSOR (SAS) -

STEERING

COLUMN

TRAILER

PRESSURE

CONTROL

REAR AXLE

MODULE (RAM) -

DRIVE AXLE

ABS/ATC/ESP

ECU

P

V

SUPPLY

PRIMARY

SECONDARY

V

P

PRESSURE SENSOR -

BRAKE DEMAND

SECONDARY

DOUBLE CHECK

ASSEMBLY - SC-3's

YAW RATE

SENSOR (YRS) -

CHASSIS

PRESSURE

SENSOR - AIR

SUSPENSION

PRESSURE SENSOR -

BRAKE DEMAND

PRIMARY

P

V

FRONT AXLE

MODULE (FAM) -

STEER AXLE

Example 1: ABS with ESP (Electronic Stability Program)

1 2 3 4
