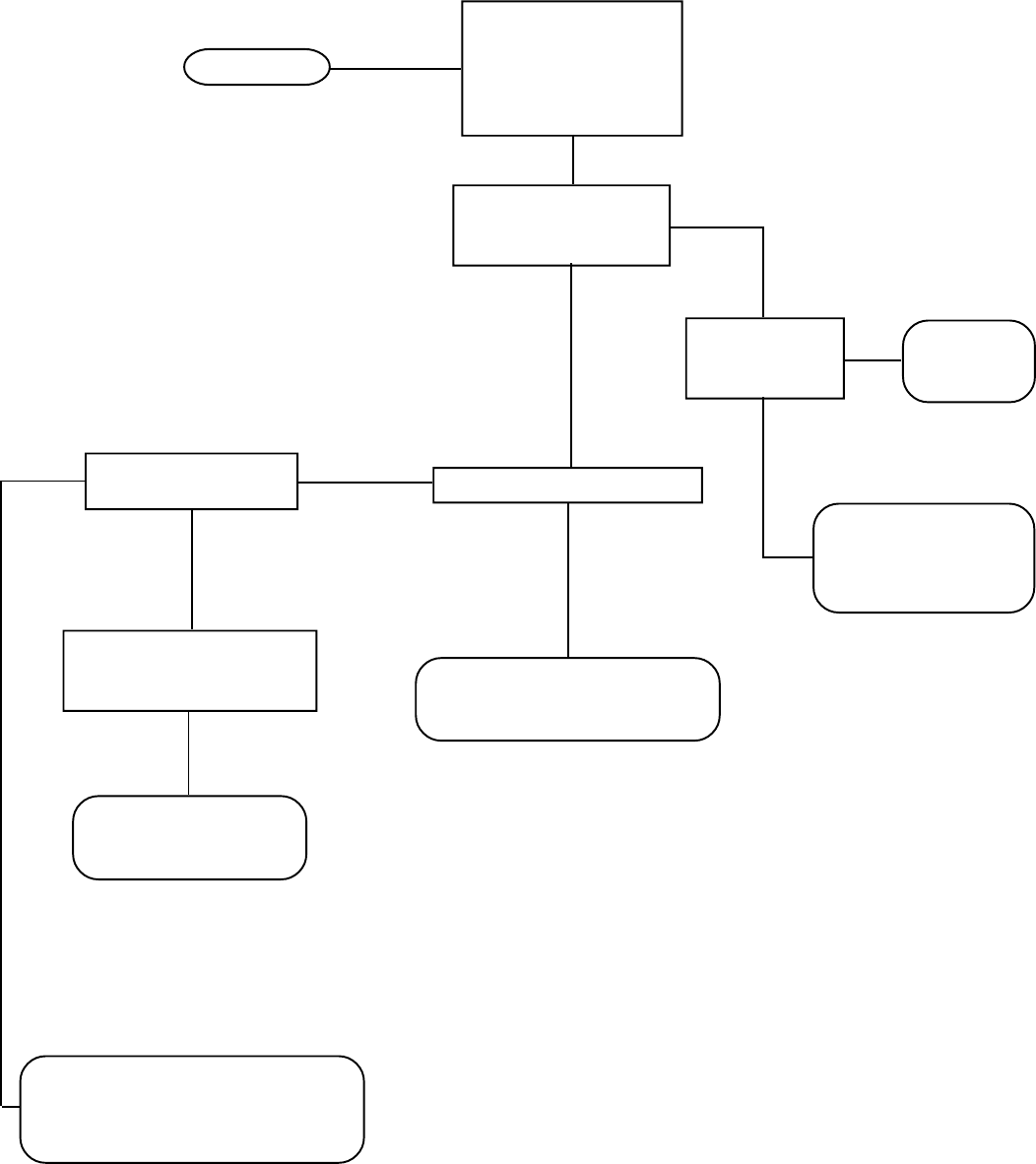

TROUBLESHOOTING

SECTION II - INSPECTION FOR ILLUMINATED LEDS

START HERE

YES (ON)

YES

NO (OFF)

GO TO SECTION IV

“INSPECTION FOR

ILLUMINATED LEDS”.

NOTE AND RECORD

THE CONDITION OF

ALL RED LEDS

ARE ANY RED LEDS

ILLUMINATED?

GO TO SECTION V

“TESTING FOR POWER

TO THE EC-15

™

CONTROLLER”

ARE ANY RED

LED’S

ILLUMINATED?

CHECK CLOSELY

AND NOTE IF GREEN

LED IS ILLUMINATED

INSPECT EC-15

™

CONTROLLER FOR

PRESENCE OF

ILLUMINATED LEDS

AND RECORD.

GO TO SECTION V “TESTING

FOR POWER TO THE EC-15

™

CONTROLLER”.

GO TO SECTION VIII “TESTING

FOR FALSE FAILURE INDICATION

- CAUSED BY DASH LAMP

RELAY”.

REPLACE

THE EC-15

™

CONTROLLER

IS GREEN LED FLASHING?
