INSPECT EC-15

™

CONTROLLER FOR PRESENCE

OF ILLUMINATED LEDS AND RECORD.

VOLTAGE LED ILLU-

MINATES WHEN POWER

TO EC-11

™

CONTROLLER

FALLS OUTSIDE 9-18

VOLT RANGE. IF VOLTAGE

RETURNS TO AN

ACCEPTABLE LEVEL. THE

LED WILL GO OFF.

GO TO SECTION

VI - TESTING

WHEEL SPEED

SENSOR

GO TO SECTION IV -

TESTING FOR POWER TO

EC-11

™

CONTROLLER

GO TO SECTION V

- TESTING

MODULATOR

RED

MODULATOR

LED (MOD) IS

ILLUMINATED

RED SENSOR

LED (SNS) IS

ILLUMINATED

RED VOLTAGE

LED (VOLT) IS

ILLUMINATED

RED

CONTROLLER

LED (CONT) IS

ILLUMINATED

GO TO SECTION IV

- TESTING FOR

POWER TO EC-11

™

CONTROLLER

TROUBLESHOOTING

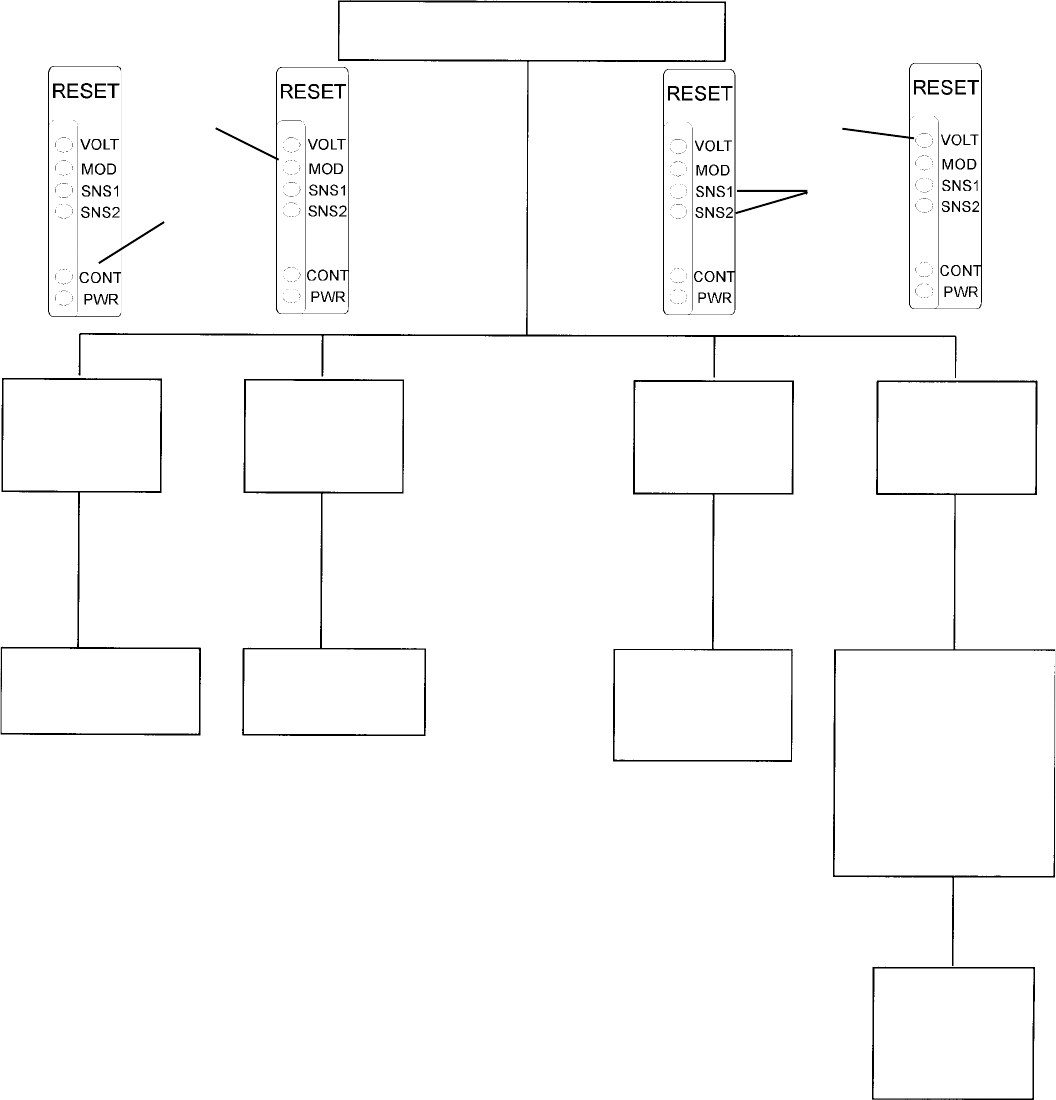

SECTION III - INSPECTION FOR ILLUMINATED RED LEDS

CONT

MOD

SNS

VOLT

1 2 ... 9 10 11 12 13 14 15 16 17 18 19 20
