Drive Axle Installations

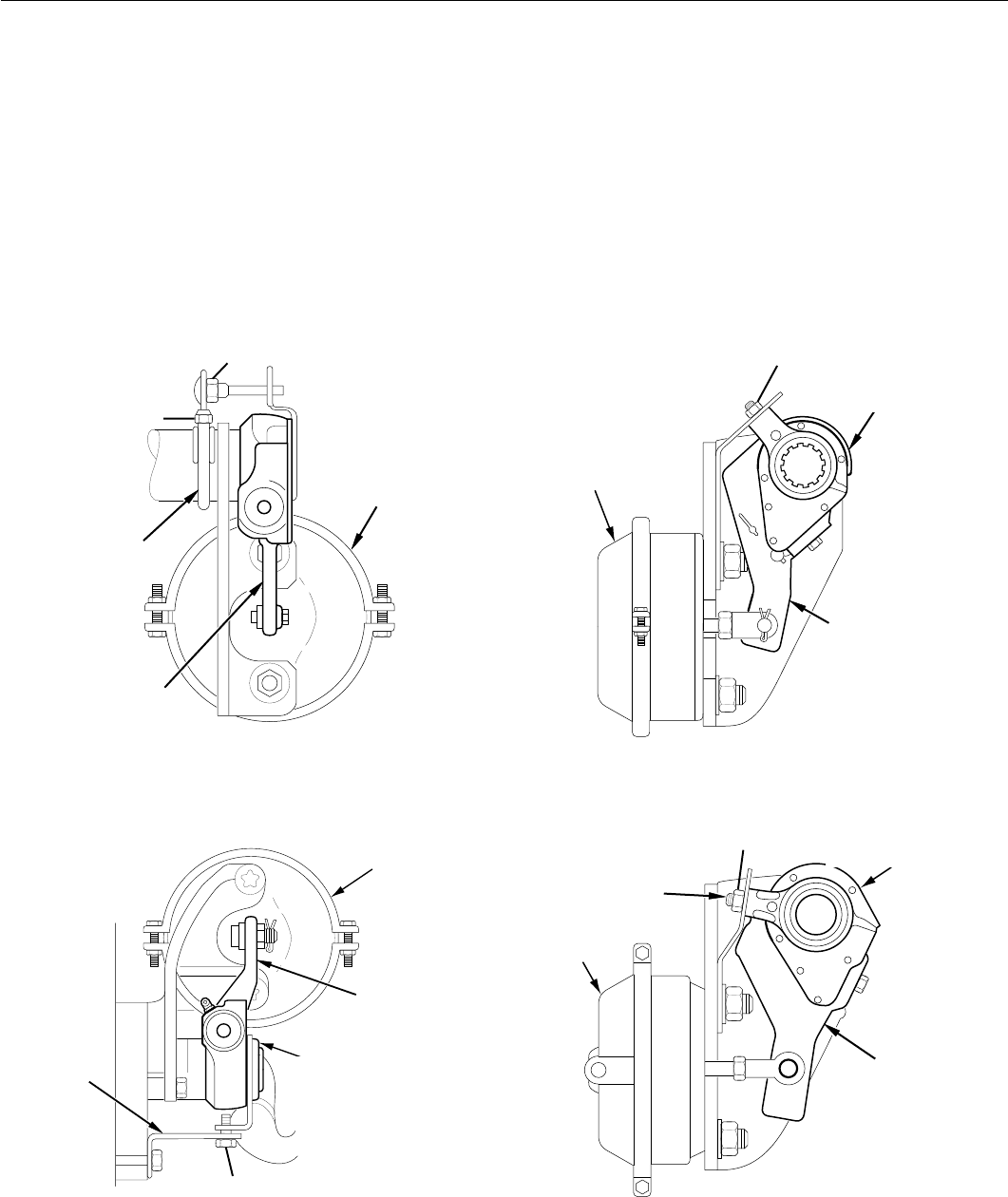

Figures 6, 7, 8 and 9 show typical brackets for self adjusting brake

adjuster installations on drive axle brakes:

• Straight brake adjuster using a clamp-type bracket

(See Figure 6.)

• Offset brake adjuster using bolt-on bracket

(See Figure 7.)

• Straight brake adjuster using bolt-on type bracket

(See Figure 8.)

• Disc brake application (See Figure 9.)

Refer to pages 9, 10 and 11 for detailed installation procedures.

Figure 6 Straight (Clamp-Type) Installation

Figure 7 Offset (Bolt-On Type Bracket) Installation

Figure 8 Straight (Bolt-On Type Bracket) Installation

Figure 9 Disc Brake Type Installation

AIR

CHAMBER

BOLT-ON

BRACKET

AUTOMATIC SLACK

ADJUSTER

STRAIGHT

ARM

Typical Applications

AIR

CHAMBER

CLAMP-TYPE

BRACKET

STRAIGHT

ARM

AUTOMATIC SLACK

ADJUSTER

AIR

CHAMBER

STRAIGHT

ARM

AIR

CHAMBER

OFFSET

ARM

AUTOMATIC SLACK

ADJUSTER

BOLT-ON

BRACKET

AX09

SELF ADJUSTING

BRAKE ADJUSTER

SELF ADJUSTING

BRAKE ADJUSTER

SELF ADJUSTING

BRAKE ADJUSTER

TORQUE TO

20-30 FT. LBS.

TORQUE TO

40-50 FT. LBS.

TORQUE TO

15-20 FT. LBS.

TORQUE TO

8-12 FT. LBS.

TORQUE TO

8-12 FT. LBS.
